Device Dimensions
|
Top Well Surface Area |
Top Well Volume |
Bottom Channel Surface Area (full – use for coating calculations)* |
Bottom Channel Surface Area (one surface – use for cell seeding calculations)* |
Bottom Channel Volume |
| ~37 mm^2 | 100 µl (can hold up to 115 µl) | ~90 mm^2 | ~42 mm^2 | 10 µl (pipet 20 µl to avoid bubbles) |
*see bottom channel area explanations at bottom of the page for visuals

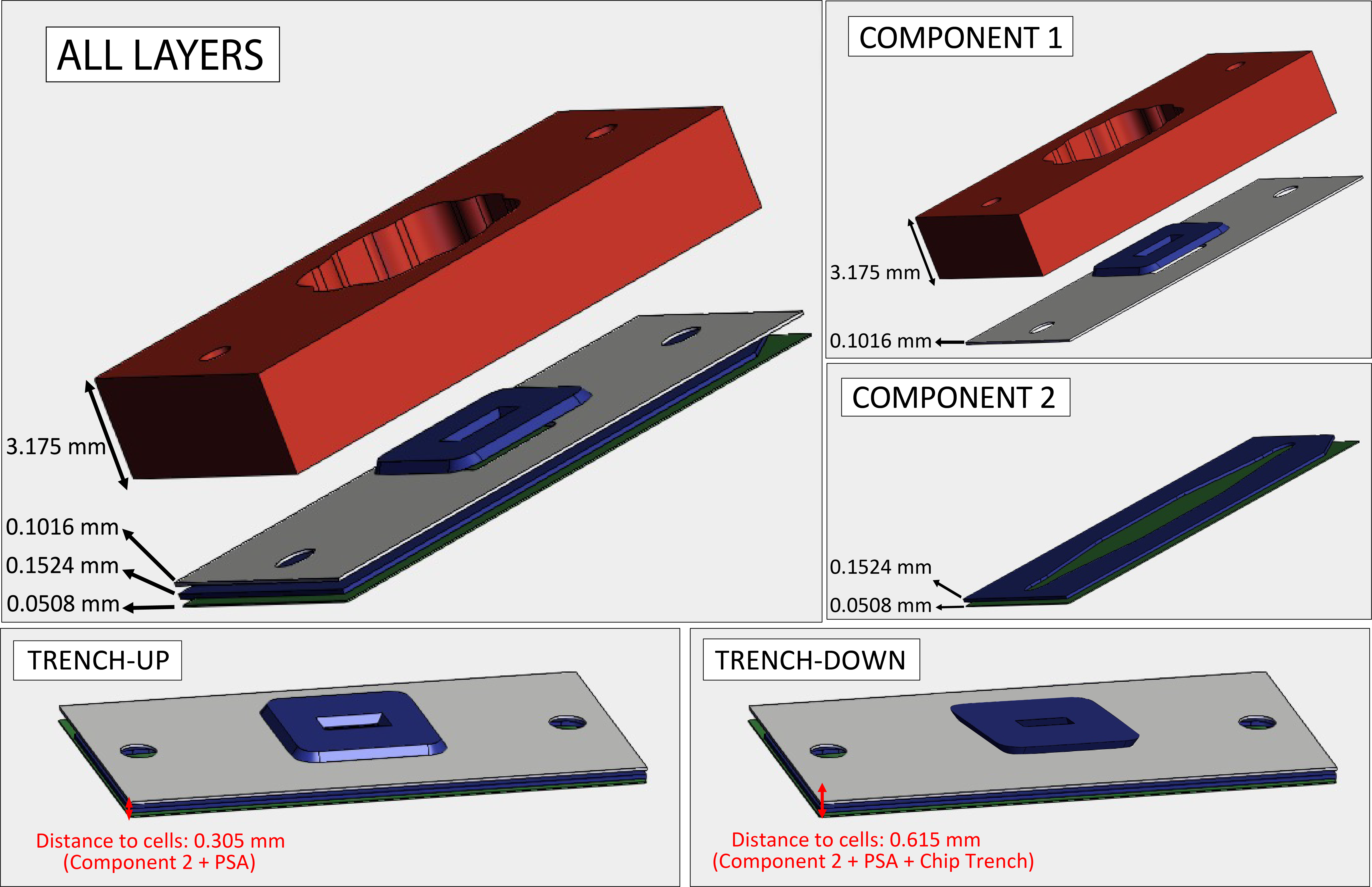

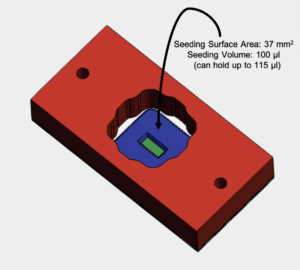

Component 1 (V1) – Top Well

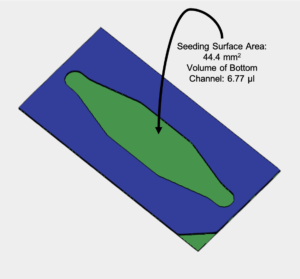

Component 2 (V1) – Bottom Channel

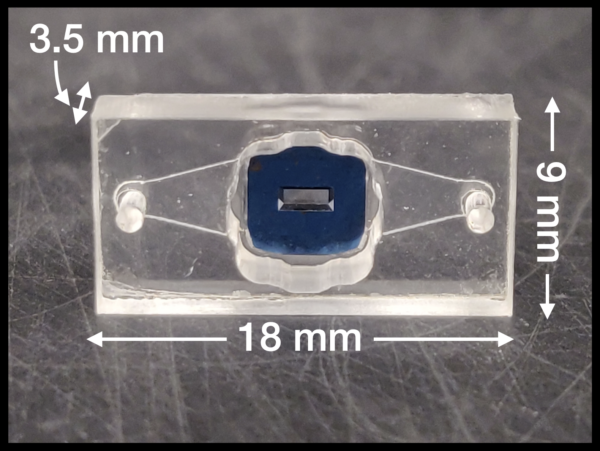

Completed Device (V1)

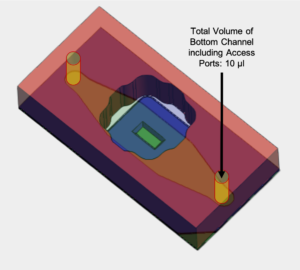

Total volume of bottom channel including access ports: 10 µl
Bottom Channel Area Explanations

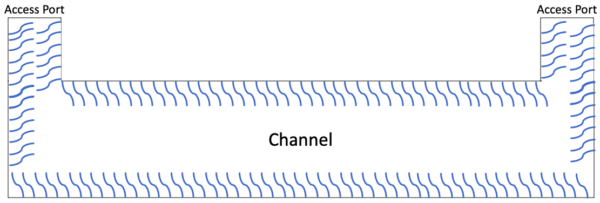

Bottom Channel Surface Area (full)
Coating molecules adhere to the full surface area of the channel

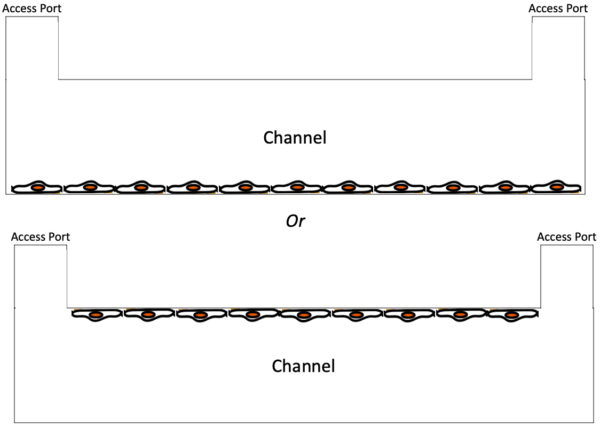

Bottom Channel Surface Area (one surface)
Cells settle on the bottom of the channel (top side if the device is flipped), and do not attach to any other surface area
