Common Chip Formats

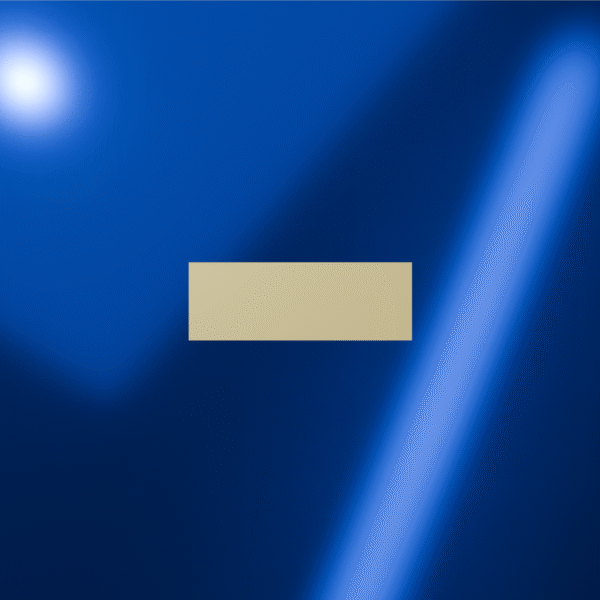

Name 1 Slot

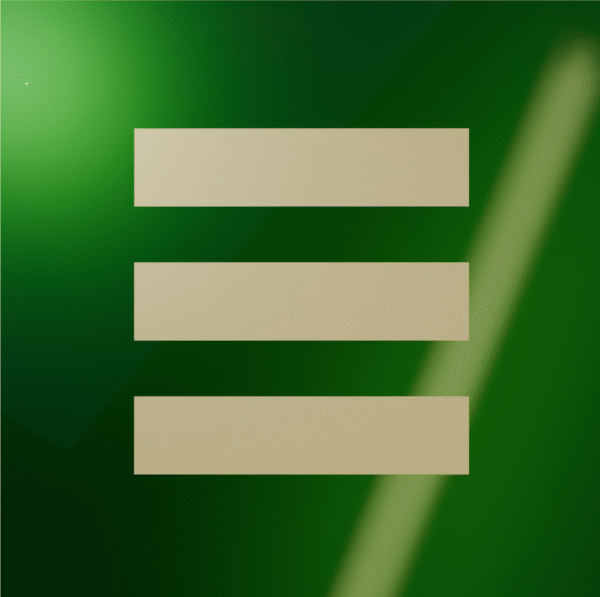

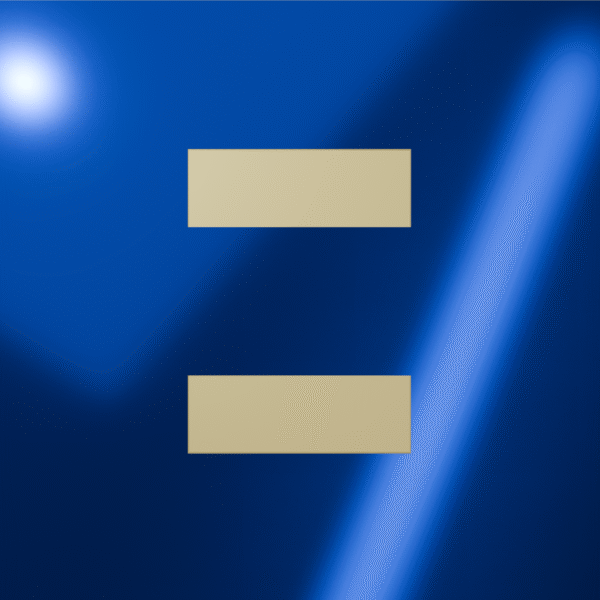

2 Slot 3 Slot

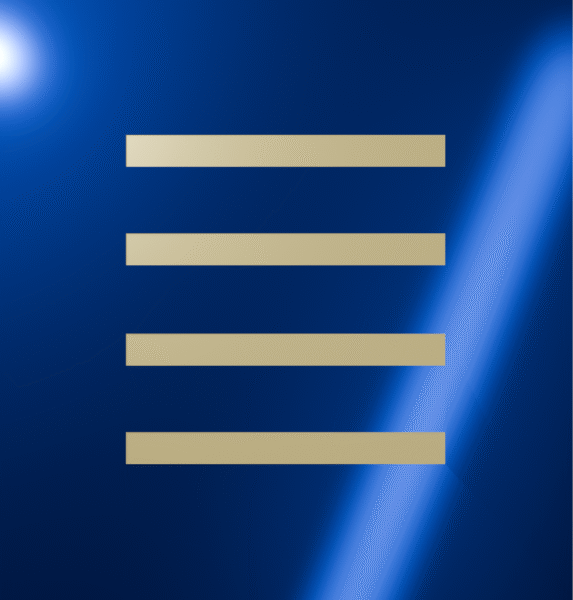

4 Slot
5 Slot

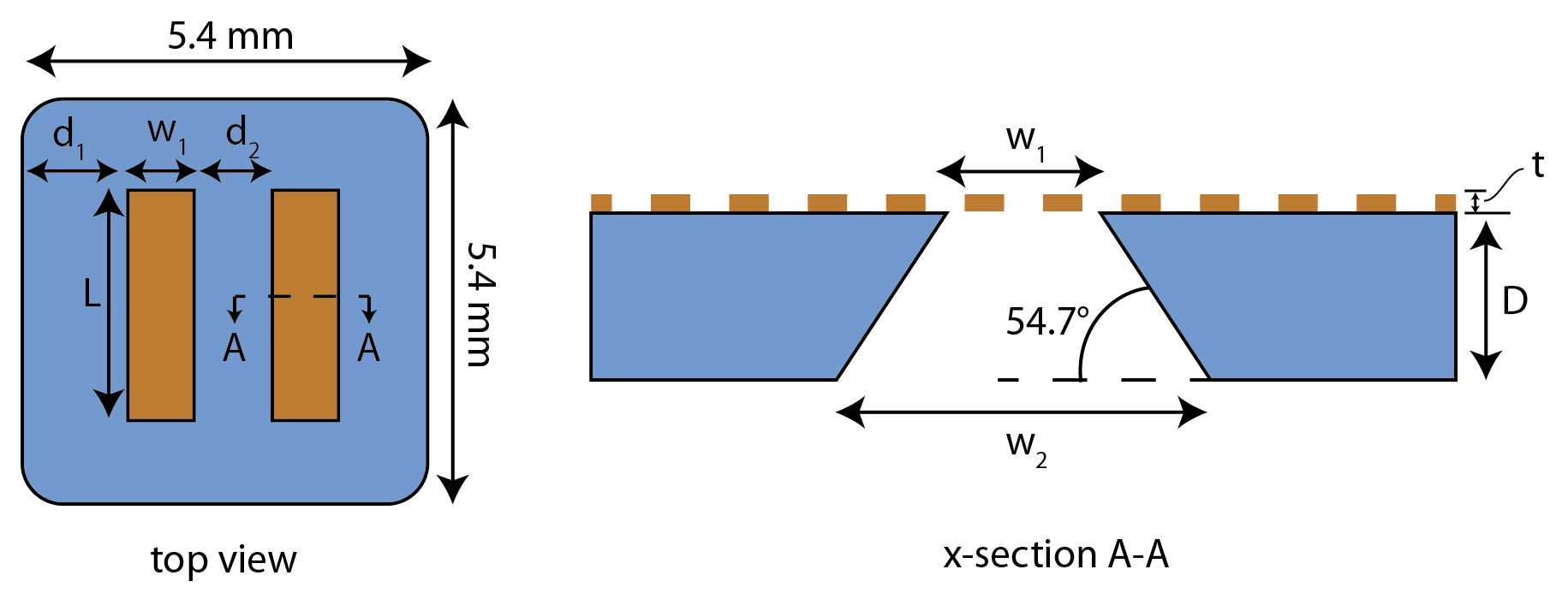

D 310 µm 310 µm 310 µm  310 µm  310 µm
W1 700 µm 700 µm  700 µm  300 µm 150 µm
L 2 mm 2.5 mm   3 mm  3 mm  3 mm
W2 1138 µm  1138 µm 1138 µm 738 µm 538 µm
d1  2300  µm 1625 µm   1100  µm   1100 µm 1500 µm
d2  N/A  750  µm  500  µm   625 µm   450 µm
Membrane Area 0.014 cm²  0.035 cm² 0.063 cm² 0.036 cm² 0.015 cm²

































Product Pore Size  Thickness  Transparency  Pore Density  Porosity  Diffusive Permeability
NPN 60 nm 100 nm Glass-like 1 x 10¹º cm⁻² 20 % 0.1 cm/sec
Dual Scale 60 nm and 3 μm 100 nm Glass-like 1 x 10¹º cm⁻² 25% > 0.1 cm/sec
SiN 0.5 μm 400 nm Excellent 1 x 10⁸ cm⁻² 5%, 20% 0.03 cm/sec
G-Flat™ Oxide

0.5 μm

8 μm

300 nm Excellent 1 x 10⁸ cm⁻² 5%, 20% 0.03 cm/sec
