Design files for the modular µSiM, the hToC, our silicon nanomembrane chips and accessories. Each bundle is a .zip of the source CAD and drawings. Open any part in the 3D viewer below to orbit, section and explode it before you download.

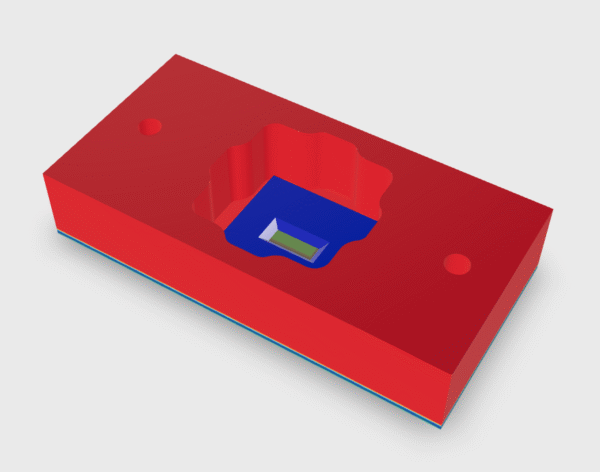

µSiM
Total assembly
040200101/102 V10.0
Bundle: SolidWorks · STEP · drawings · Fusion 360 · Inventor

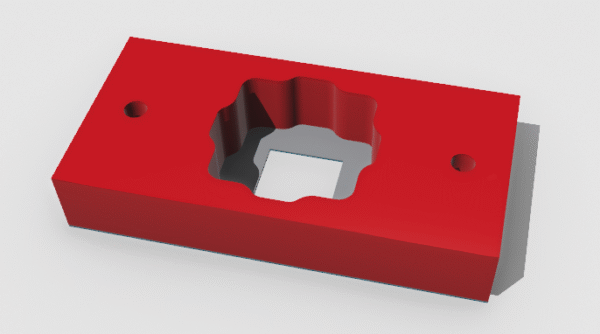

µSiM Component 1
Top component
040200101 V10.0
Bundle: SolidWorks · STEP · drawings · Fusion 360 · Inventor

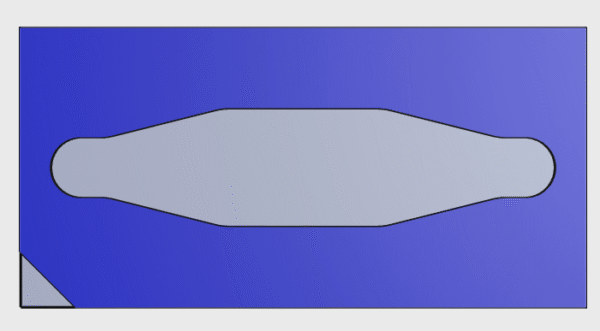

µSiM Component 2
Bottom component
040200102 V10.0
Bundle: SolidWorks · STEP · drawings · Fusion 360 · Inventor

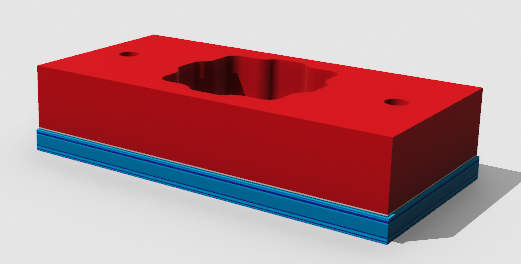

hToC Full Assembly
Human tissue-on-chip, v4, with µSiM Component 1
Assembly
Bundle: STEP · Fusion 360

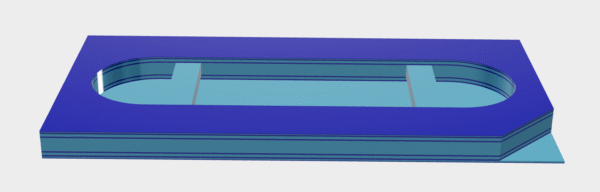

hToC Bottom Component
Bottom channel component
040200201 v3.2.2B
Bundle: SolidWorks · STEP · Fusion 360

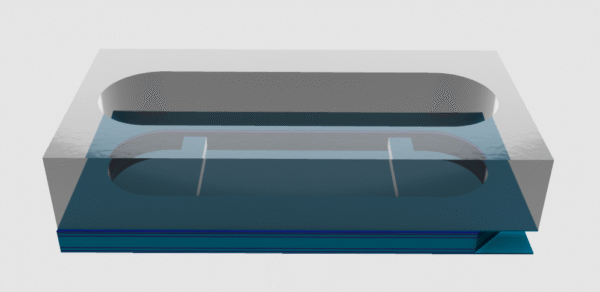

hToC Bottom Channel + Reservoir
Bottom channel with reservoir attached
Assembly
Bundle: SolidWorks · STEP · Fusion 360

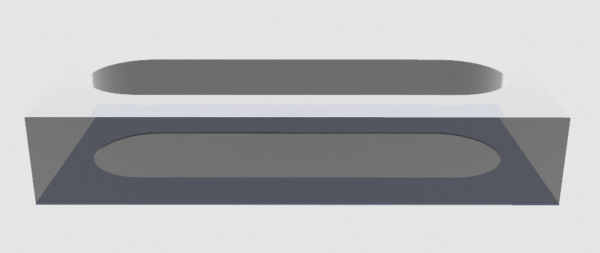

hToC Reservoir
Media reservoir
040200501 v1.0
Bundle: SolidWorks · STEP · Fusion 360
1-Slot Membrane Chip
Silicon chip with one membrane slot
5.4 × 5.4 mm, 0.31 mm thick
Bundle: SolidWorks · STEP · Fusion 360
2-Slot Membrane Chip
Silicon chip with two membrane slots
5.4 × 5.4 mm, 0.31 mm thick
Bundle: SolidWorks · STEP · Fusion 360
3-Slot Membrane Chip
Silicon chip with three membrane slots
5.4 × 5.4 mm, 0.31 mm thick
Bundle: SolidWorks · STEP · Fusion 360

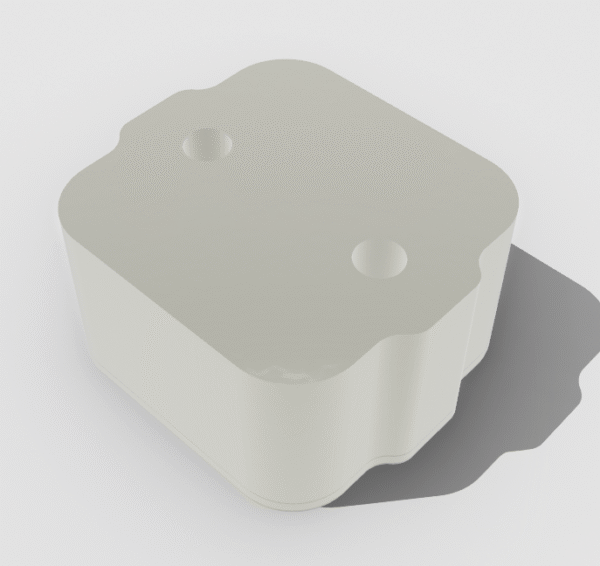

Flow Insert
Insert for flow through the top channel
040200601 V4.0
Bundle: SolidWorks · STEP

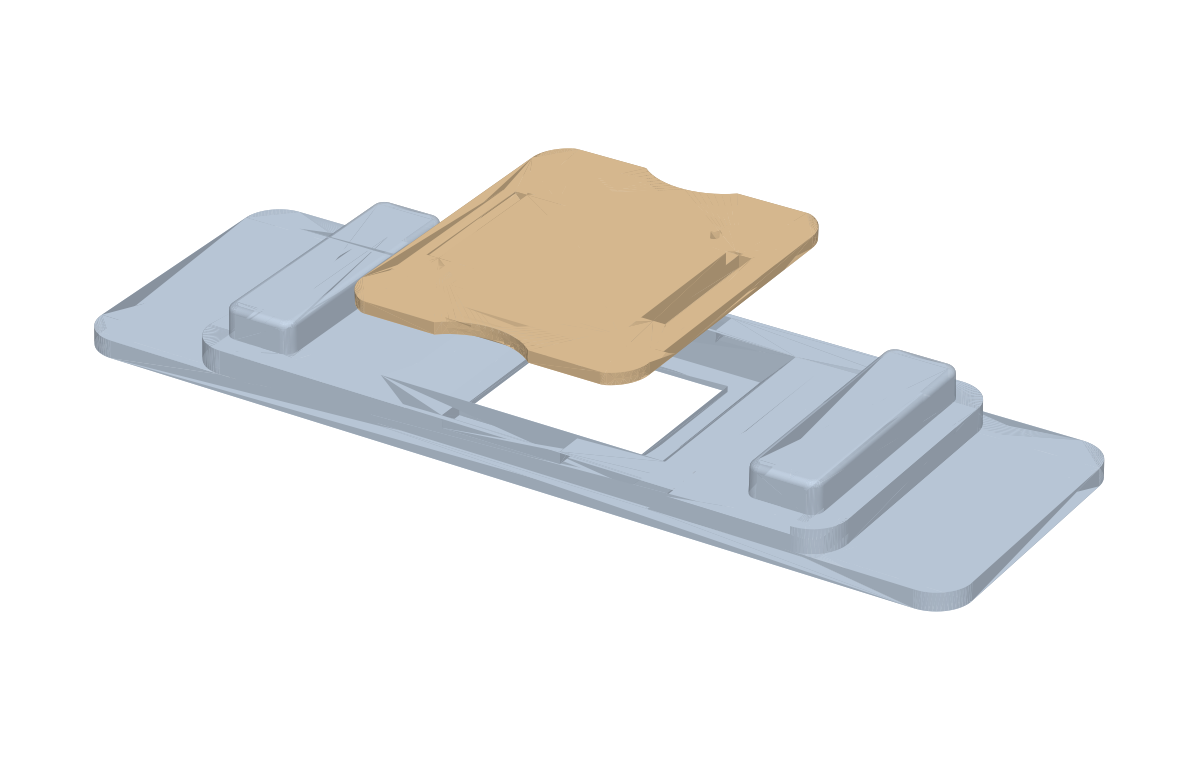

µSiM Slide Holder
Cell culture slide body + drop-in carrier
75 × 25 mm slide format
Bundle: STEP · draft drawing (not toleranced)
3D part viewer
Pick a part on the left, or use a View in 3D button above.
Part
View
Explode
Section
Display
Layers / parts
Layer names and geometry are read from the released STEP files. Thicknesses and bounding boxes are measured from that geometry, not transcribed. Full CAD bundles are in the cards above.
